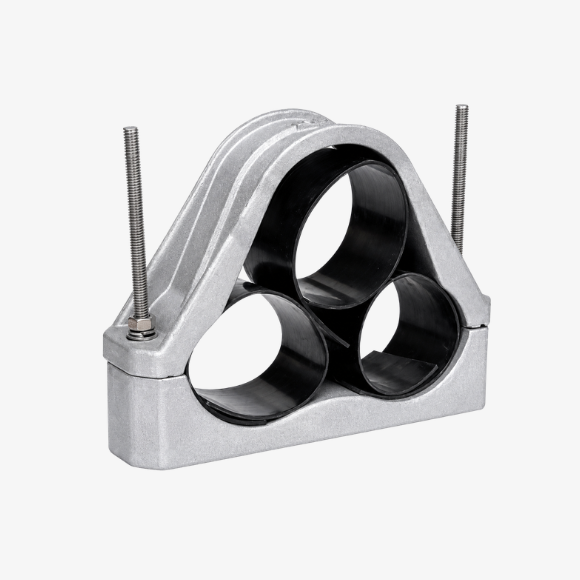

Certa’s Heavy Duty Double Bolt & Trefoil Cable Cleats are specially engineered to provide superior mechanical restraint for three single-core power cables installed in a trefoil formation. Manufactured from high-strength Aluminium Alloy, these heavy-duty cable cleats are designed to withstand high electromechanical forces generated during short-circuit conditions while ensuring maximum cable stability and long-term reliability.
Designed for Low Voltage (LV) and Medium Voltage (MV) power cable installations, these cable cleats feature a three-piece construction with a single-bolt fixing design, while a double-bolt fixing option is also available for applications requiring additional mechanical strength. The epoxy-coated finish and optional rubber liners provide excellent corrosion resistance and cable protection, making them ideal for demanding industrial, utility, and infrastructure projects. Manufactured in accordance with IEC 61914, these cable cleats deliver dependable performance in critical electrical installations.
Designed to withstand high mechanical loads and electromechanical forces during short-circuit events, ensuring secure cable restraint under demanding operating conditions.
Available with both single-bolt and double-bolt fixing configurations, allowing engineers to choose the most suitable solution for specific project requirements.
The epoxy-coated aluminium construction offers excellent protection against moisture, chemicals, UV exposure, and harsh outdoor environments.
Optional rubber liners reduce vibration and prevent abrasion, protecting cable insulation while extending service life.
Manufactured using premium-grade aluminium alloy and precision engineering to deliver dependable performance with minimal maintenance.
| Specification | Details |
|---|---|
| Product Type | Heavy Duty Double Bolt & Trefoil Cable Cleat |
| Material | High-Strength Aluminium Alloy |
| Cable Configuration | Trefoil (Three Cable Formation) |
| Cable Diameter Range | 24 mm – 76 mm |
| Suitable Cable Type | LV & MV Power Cables |
| Fixing Design | Three-Piece Single Bolt |
| Optional Fixing | Double Bolt Design |
| Surface Finish | Epoxy Coated |
| Rubber Liner | Optional |
| Operating Temperature | -60°C to +105°C |
| Available Sizes | 36 Standard Sizes |
| Standard | IEC 61914 |
Certa designs and manufactures premium cable cleats that deliver superior mechanical performance, long-term durability, and maximum cable protection. The Heavy Duty Double Bolt & Trefoil Cable Cleats are engineered using high-strength aluminium alloy to provide exceptional cable restraint in demanding electrical installations. With flexible fixing options, epoxy-coated construction, optional rubber liners, and compliance with IEC 61914, they offer a reliable and maintenance-friendly solution for industrial and utility cable management.
