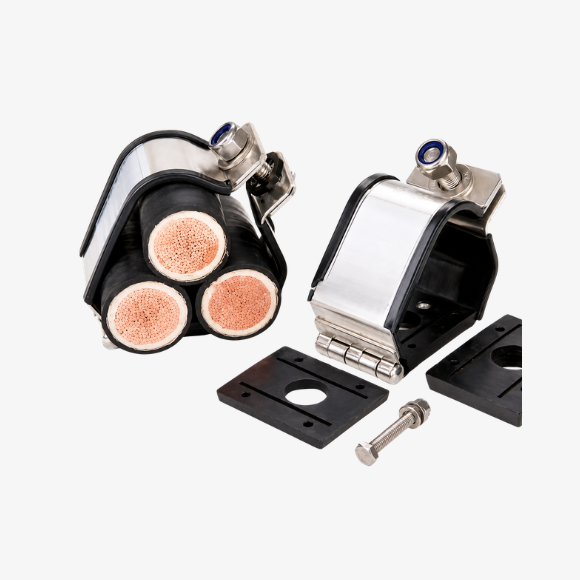

Certa’s Trefoil Cable Cleats are engineered to securely retain three single-core cables arranged in a trefoil configuration, ensuring excellent mechanical strength and reliable cable management. Manufactured using premium Marine Grade 316L Stainless Steel with a composite cleat body, these cable cleats are designed to withstand high short-circuit forces, harsh environmental conditions, and demanding industrial applications.
Designed in accordance with IEC 61914, the CC01 Trefoil Cable Cleat provides superior resistance against electromechanical forces generated during fault conditions while protecting cable integrity throughout its service life. These cleats are ideal for power distribution networks, substations, industrial plants, renewable energy projects, railways, tunnels, offshore installations, and data centres.
The SS316LS Trefoil Cable Cleat is designed to withstand high mechanical loads during short-circuit conditions, ensuring cables remain securely fixed.
Marine Grade 316L stainless steel offers outstanding protection against corrosion, making it suitable for coastal, offshore, chemical, and humid environments.
The composite body and LSHF integral pad protect cable insulation from damage while minimizing vibration and movement.
Built using premium materials, these cable cleats provide reliable long-term performance with minimal maintenance.
The integrated mounting hardware allows quick installation while ensuring secure cable retention.
| Specification | Details |
|---|---|
| Product Type | Trefoil Cable Cleat |
| Model | CES-T |
| Standard | IEC 61914 |
| Cleat Material | Composite |
| Frame Material | Marine Grade 316L Stainless Steel |
| Frame Size | 50 mm × 2.0 mm |
| Hardware | 316 Stainless Steel M8 / M10 with Nylon Lock Nut |
| Integral Pad | Low Smoke Halogen Free (LSHF) |
| Mounting | Bolt Supplied with Cable Cleat |
| Installation Tool | Standard Wrench |
| Property | Performance |
|---|---|
| Electromechanical Force Resistance | 230 kA at 300 mm Spacing |
| Lateral Load Test | Average 25 kg |
| Axial Load Test | Pass |
| Operating Temperature | -40°C to +120°C |
| Impact Resistance | Very Heavy |
| Needle Flame Test | 30 Seconds |
| UV Resistance | 1000 Hours |
Certa manufactures high-quality cable management products that meet international safety standards. Our Trefoil Cable Cleats are engineered for maximum cable protection, superior mechanical performance, and long-lasting durability under the most demanding operating conditions. With precision manufacturing and stringent quality control, Certa products deliver dependable performance across industrial and infrastructure projects worldwide.
