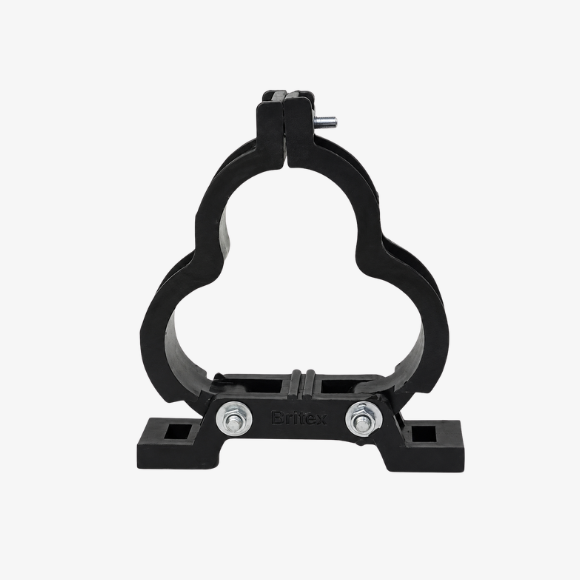

Certa’s Nylon / LSOH / FRP Trefoil Cable Cleats are engineered to provide reliable restraint for three single-core power cables arranged in a trefoil formation. Manufactured from high-quality glass fibre reinforced polyamide (FRP / Glass Filled Nylon), these cable cleats are specifically designed to withstand high short-circuit forces while ensuring maximum cable protection and long-term durability in demanding electrical installations.
Designed for Low Voltage (LV), Medium Voltage (MV), and High Voltage (HV) power cable systems ranging from 1.1 kV to 132 kV, these non-metallic cable cleats offer exceptional resistance to corrosion, chemicals, UV radiation, moisture, and extreme temperatures. Manufactured in compliance with IEC 61914, they provide a safe, maintenance-free solution for industrial, utility, and infrastructure cable management applications.
The double bolt clamping mechanism provides exceptional mechanical strength, ensuring secure cable support even in high-load and fault conditions.
Designed for Low Voltage (LV), Medium Voltage (MV), and High Voltage (HV) cable systems, these cable cleats provide reliable cable restraint across a wide range of electrical applications.
Manufactured using advanced Nylon and LSOH materials, the cleats offer superior resistance to UV exposure, moisture, weathering, oils, and corrosive industrial environments.
The ability to double stack on a common fixing allows efficient cable routing while minimizing installation space and hardware requirements.
The combination of engineering-grade polymers and robust construction ensures dependable long-term performance with minimal maintenance.
| Specification | Details |
|---|---|
| Product Type | Nylon / LSOH / FRP Double Bolt Cable Cleat |
| Material | Nylon 06, Nylon 30% GF & LSOH Polymer |
| Design | Two-Piece Double Bolt Fixing |
| Cable Diameter Range | 50 mm – 125 mm |
| Suitable Cable Type | LV, MV & HV Cables |
| Operating Temperature | -40°C to +120°C |
| UV Resistance | Yes |
| Corrosion Resistance | Yes |
| Weather Resistance | Yes |
| Oil Resistance | Yes |
| Colour | Black |
| Standard | IEC 61914 |
Certa manufactures premium non-metallic cable cleats designed to provide exceptional cable safety, mechanical strength, and environmental resistance. Manufactured from glass fibre reinforced polyamide, these trefoil cable cleats offer superior resistance to short-circuit forces, corrosion, UV exposure, and aggressive industrial environments. Their non-magnetic construction, smooth cable contact surfaces, and compliance with IEC 61914 make them the ideal choice for critical power distribution and infrastructure projects.
